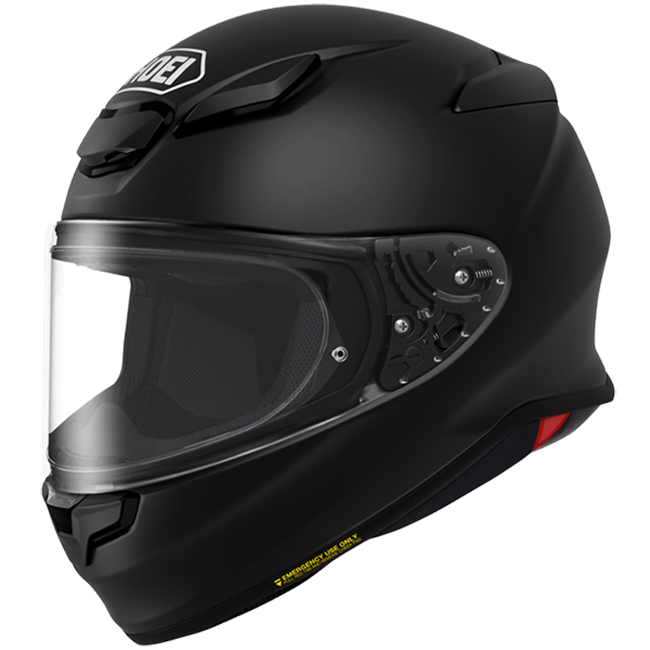

DESIGN CONCEPT

• Evolved design, functionality and performance over its predecessor
• Wind tunnel-tested and refined aerodynamics and ventilation performance
• Compact, aerodynamic shell shape with integrated spoiler
• ECE 22.06 Certified
• All-new shield and base plate system for optimised visibility and performance
• Noise-reduction technology reduces unwanted wind and road noise

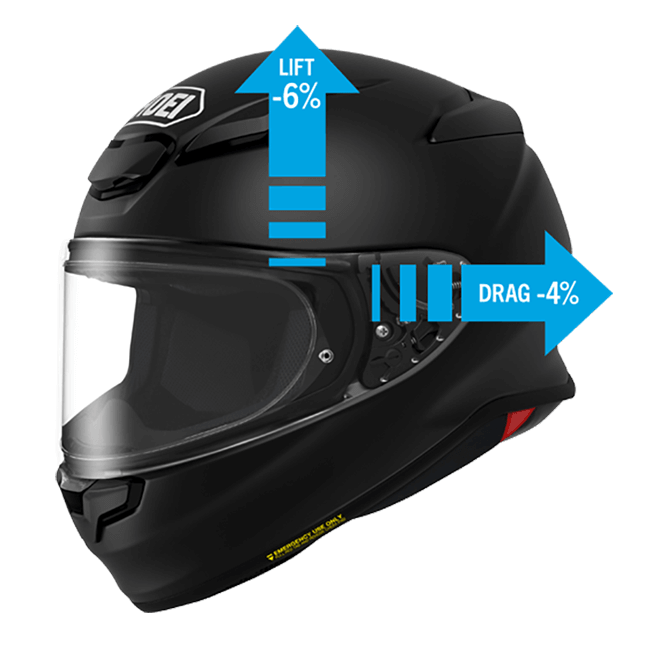

AERODYNAMICS

• Developed and refined in SHOEI’s state-of-the-art wind tunnel facility
• Compact, aerodynamic shell shape with integrated spoiler
• Optimal balance between airflow and silence
• Strategically shaped air intake and exhaust vents help streamline the overall profile
• Boasts impressive improvements in aerodynamic performance and reduces the forces placed on a rider’s head
• Lift reduction (upward lift forces): -6%*
• Drag reduction (forward drag forces): -4%*

* Reference value comparison measured using SHOEI’s in-house wind tunnel testing facilities (NXR2 vs. NXR).

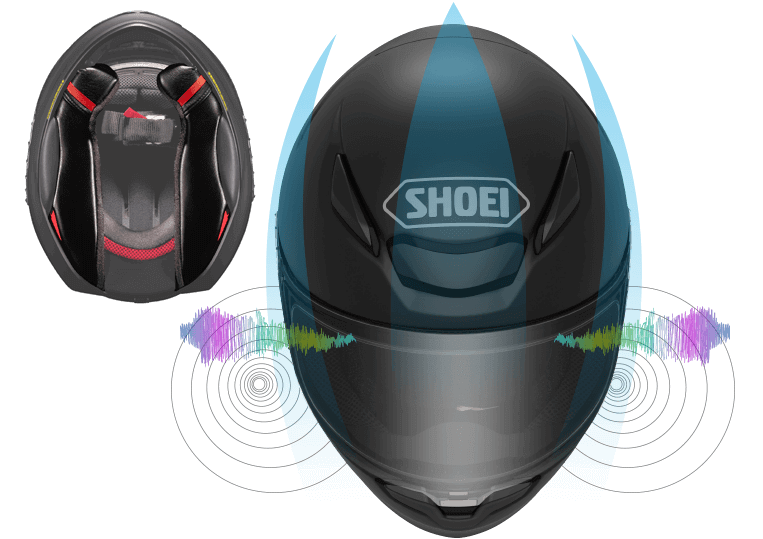

ADVANCED NOISE REDUCTION

• Optimal shell aerodynamics reduce wind noise around the helmet
• Vortex Generators on the sides of the shield reduce wind turbulence
• All-new, airtight window beading provides wind/waterproof seal
• New, voluminous cheek pads and removable ear pads further restrain wind noise inside the helmet
• The NXR2 provides a superb, quiet riding experience without blocking the road’s informative sounds

VENTILATION PERFORMANCE

• Wind tunnel-optimised to provide the perfect balance between airflow and silence
• Relocated centre/forehead vent is equipped with an additional air intake hole for greater airflow into the helmet
• Upper air intake holes have been enlarged for optimal performance
• New, enlarged exhaust outlet vent for improved hot-air expulsion
• Large 3-position lower vent shutter for ease of use with riding gloves
• Features six (6) air intake vents and four (4) exhaust outlets

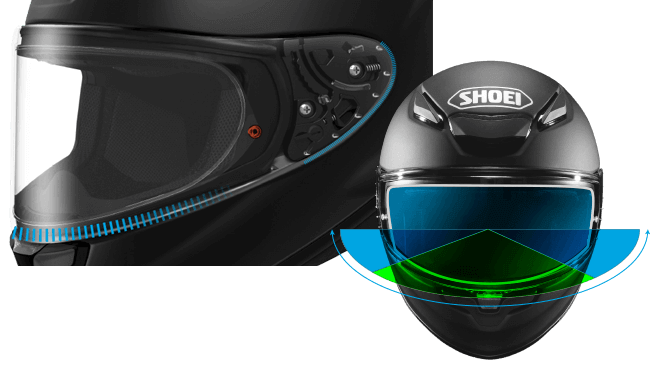

CWR-F2 SHIELD

• Improved visibility, functionality, and performance over its predecessor
• Protects from 99% of the sun’s damaging UV rays
• 3D injection-moulding ensures distortion-free view throughout the entire field of vision
• 2D “flat” outside surface combined with 3D technology inside offers an aggressive look with optimised visibility
• Vortex Generators improve shield aerodynamics and reduce wind noise
• All-new, conveniently located centre locking mechanism evenly distributes shield forces across both base plates
• PINLOCK EVO fog-resistant system is 10% larger for improved lateral vision

CWR-F2 BASE PLATE SYSTEM

• Completely redesigned to facilitate quicker, smoother shield changes
• New shield adjuster mechanism provides easier, more precise tuning
• Redesigned base plate gear has all-new “first position” shield opening feature for advanced venting and defogging
• SHOEI’s patented spring-loaded technology ensures a wind and waterproof seal
• All-new airtight window beading reduces wind and water intrusion

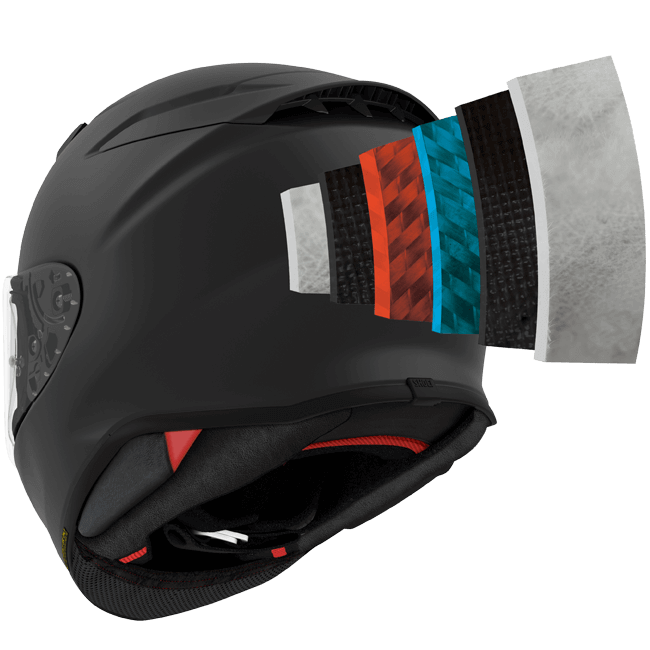

MULTI-PLY MATRIX AIM SHELL

• Proprietary technology integrates a multi-ply matrix specifically designed to exceed the updated ECE22.06 Certification
• Hand-laid interwoven layers of fibreglass with lightweight organic and high-performance fibres
• 4 Different outer shell sizes (XXS-S/M/L/XL-XXL)
• Shell-integrated spoiler with consistent shell thickness guarantees proper strength and weight

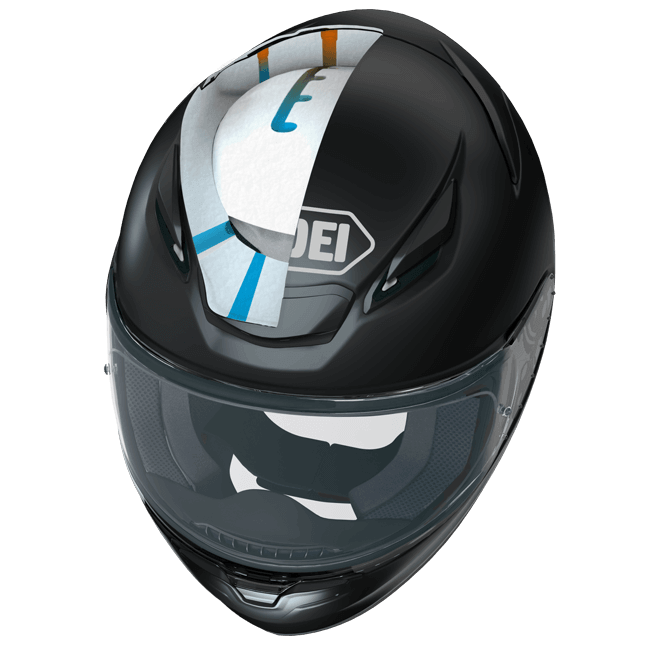

DUAL-LAYER/MULTI-DENSITY EPS LINER

• Provides enhanced impact absorption by utilising varying densities of foam
• Allows cooling air to travel unrestricted through tunnels created in the EPS
• Precise placement of multi-density EPS material yields a more compact, lightweight design

E.Q.R.S. – EMERGENCY QUICK RELEASE SYSTEM

• Allows emergency medical personnel to easily and safely remove the cheek pads from an injured rider’s helmet
• Helmet can be gently removed from an injured rider’s head with minimal load placed on his/her neck
• Double D Ring retention system.

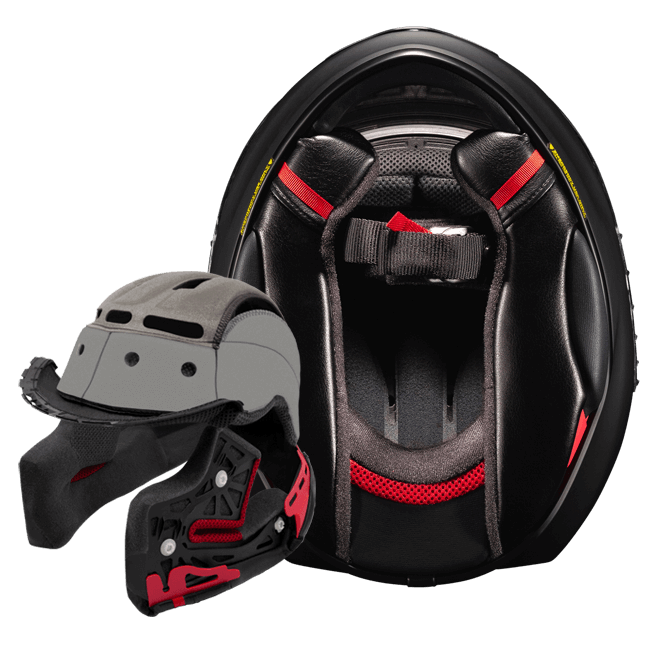

3D MAX-DRY INTERIOR SYSTEM II

• Fully removable, washable, replaceable and adjustable
• Exclusive Max-Dry material absorbs and dissipates sweat 2X faster than traditional nylon interiors
• Soft yet durable lower cheek pad fabric for a plush fit and feel
• Three-dimensionally shaped to match the contours of a rider’s head
• Multi-layer cheek pads for improved comfort and helmet stabilization
• Cheek pads feature more volume for greater comfort and reduced wind noise
• Optional interior components available in different sizes for a customizable fit
• Cheek pads in different thicknesses (31, 35, 39, 43 mm) available separately
• Removable Ear Pads for easy intercom fitment
• Intercom prepared

ACCESSORIES

• Breath guard (included)
• Chin curtain (included)
• Ear pads (included)
• Pinlock ® EVO shield and insert (included)
• Nylon drawstring helmet bag (included)
